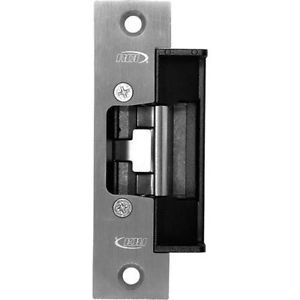

Rutherford controls L6514X32D 1500 Univ Strike Low Profile

Rutherford controls L6514X32Dcombining several requested key features. Standard features include a multi voltage single solenoid, selectable lock mode (no tools necessary), horizontal adjustment, and plug in wire connectors. An optional monitor switch is also available.TheL65 Low Profileversion accepts 1/2 inch or 5/8 inch latch projection (perfect for narrow stile aluminum frames). TheS65 Standard versionis ideal when you require 3/4 inch latch projection.CLICK HERE FOR Rutherford-L6514X32D-specifications.pdfField selectable lock mode – choose fail locked or fail unlocked with the turn of a dial (Fail unlocked mode requires DC voltage)Field selectable voltage input – accommodates 12 or 24VDC and 12 to 24VAC (even 16VAC) in one strikeUL Listed for 1500 lbs static strength1/4″ Horizontal AdjustmentModular “plug-in” wire connectors for fast hook-upModular faceplate designs for a variety of frame types and cut outs1-3/16″ (S), 1-1/16″ (L) frame depthUniversal model includes 3 faceplates (04/14/08) L65U / S65UStainless steel faceplateNon-HandedTrim Plate Included
