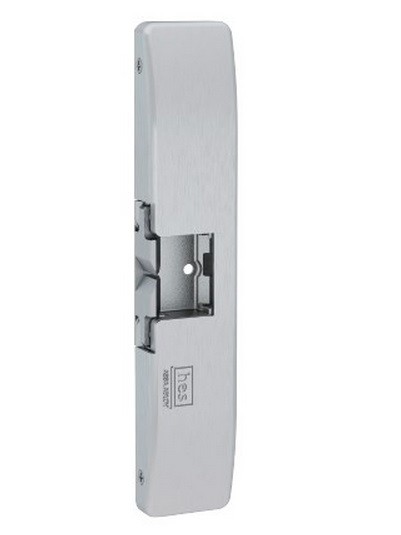

Hanchett Entry Systems 9600-630is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with 3/4″ throw latch. All components are completely encased within its 3/4″ thick stainless steel housing, and no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, aligning it with the exit latchbolt and install. It is field selectable for fail secure and fail safe operation, and for 12 or 24 VDC.The 9600 was the first surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.CLICK HERE FOR Hanchett-9600-630-specifications.pdfSpecificationsANSI 250.13-2003 Severe Windstorm listedFlorida Building Code Approved (FL#14307)UL 1034 burglary-resistant listed and suitable for outdoor useUL 294 (6th Edition) listedANSI/BHMA, A156.31 Grade 1 (#E09731, #E09732, #E09373)RoHS compliantPatent # 6,390,520Frame applicationMetalWoodElectrical.45 Amps at 12 VDC continuous duty.25 Amps at 24 VDC continuous dutyPoE friendly
