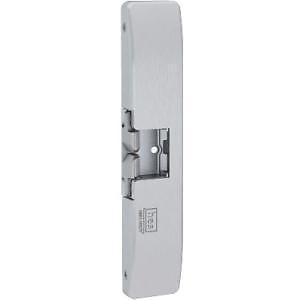

Hanchett Entry Systems 9500-630is 3-hour fire rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4 inch Pullman latch. All components are completely encased within its 3/4 inch thick stainless steel housing, so no cutting on the frame is required for installation. Simply placing the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. The 9500 is exceeding grade 1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24 VDC. This unique electric strike complying with NFPA 80-07 guidelines for retrofit into fire-rated frames.CLICK HERE FOR Hanchett-9500-630-specifications.pdfSpecificationsUL 10C fire-rated,3 hour(fail secure)CAN4-S104 (ULC-S104) fire door conformantWHI fire door listedUL 1034 burglary-resistant listed and suitable for outdoor useUL 294 (6th Edition) ListedANSI/BHMA A156.31, Grade 1 (#E09371, #E09372, #E09373)NFPA-252 fire door conformantASTM-E152 fire door conformantCalifornia Fire Marshall listedNFPA 80-07 compliantRoHS compliantPatent #6,390,520Patent pendingFrame applicationMetalWoodElectrical.45 Amps @ 12 VDC continuous duty.25 Amps @ 24 VDC continuous dutyPoE friendlyStandard FeaturesInstalls in metal or wood framesSeparate base and decorative coverfor easy adjustmentsStainless steel constructionTamper resistantStatic strength 1,500 lbs.Dynamic strength 70 ft-lbs.Endurance 1,000,000 cyclesField selectable fail safe/fail secureDual voltage 12 or 24 VDCHorizontal adjustabilityNon-handedInternally mounted solenoidAccommodates up to 3/4″ Pullman latchFive year limited warranty
