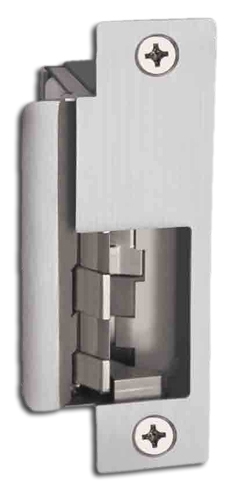

Hanchett Entry Systems 8500is a fire rated, compact, high-performance electric strike featuring a unique concealed design for use with mortise locksets without a deadbolt. Designed for fast, convenient installation, the 8500 is installing with little or no modification to the frame. Simply removing the existing strike plate, remove the dust box and install. Its strength is derived from a unique keeper pin locking design, enabling the 8500 to exceed Grade 1 ratings. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire rated frames. The 8500 accommodates mortise latch bolts up to 3/4 inchthrow.CLICK HERE FOR Hanchett-8500-specifications.pdfSpecificationsUL 10C-fire-rated, 3 hour (fail secure)CAN4-S104(ULC-S104) fire door conformantNFPA 80-07 CompliantUL 1034 burglary-resistant listed and suitable for outdoor useUL 294 (6th Edition) listedANSI/BHMA A156.31, Grade 1NFPA -252 fire door conformantASTM-E152 fire door conformantPatents PendingFrame applicationMetalWoodElectrical.24 Amps @ 12VDC.12 Amps @ 24VDCDC continuous duty/AC intermittentduty onlyStandard FeaturesNo cutting of the face of the frameStainless steel constructionTamper resistantStatic strength 1,500 lbsDynamic strength 70 ft-lbsEndurance 500,000 cyclesField selectable fail safe / fail secureDual voltage 12 or 24 VDC/VACNon-handedMetal or Wood FrameInternally mounted solenoidAccommodates 3/4 mortise latchboltsStrike body depth 1-5/16Plug-in connectorFull pocket shims for horizontal adjustmentFive year limited warranty
