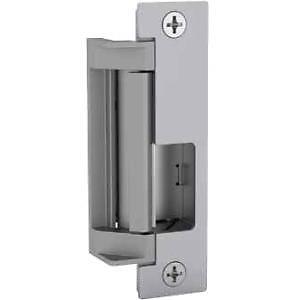

Hanchett Entry Systems 4500Cis designed for installation in 2 inches UL 10C fire-rated frames with 1/2″ drywall penetration. The 4500C features a low profile 1-3/8 inches depth, heavy-duty stainless steel construction. Its strength is derived from a unique keeper pin locking design, enables the 4500C to exceed the ratings of the frame, door and locking hardware.CLICK HERE FOR Hanchett-4500C-specifications.pdfSpecificationsUL 10C fire rated, 3 hour (fail secure only)CAN4-S104 (ULC-S104) fire door conformantUL 1034 burglary resistant listedUL 294 (6th Edition) listedANSI/BHMA A156.31, Grade 1 (#E09321, #E09322, #E09323)NFPA-252 fire door conformantASTM-E152 fire door conformantCalifornia Fire Marshall ListedPatent #5,934,720Frame applicationMetalWoodElectrical.24 Amps at 12 VDC/VAC.12 Amps at 24 VDC/VACDC continuous duty/AC intermittent duty onlyStandard FeaturesStainless steel constructionTamper resistantStatic strength 3,000 lbs.Dynamic strength 100 ft-lbs.Endurance 1,000,000 cyclesField selectable fail safe/fail secureDual voltage 12 or 24 VAC/VDCTwo faceplates provided to accommodate a variety of locksetsNon-handedInternally mounted solenoidAccommodates up to a 3/4″ latchboltStrike body depth 1-3/8″Plug-in connectorTrim enhancerFull keeper shims for horizontal adjustmentFive year limited warranty
